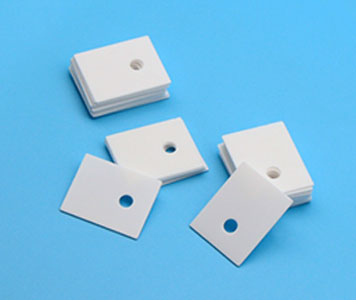

Thermal Conductive Alumina Ceramic Pad

  • Home
  • Thermal Conductive Alumina Ceramic Pad

PRODUCT DESCRIPTION

The thermal conductivity of the ceramic sheet is as high as 24W / M.K. it is resistant to high temperature and high pressure. The surface of the ceramic sheet is smooth without burr and burr. It is heated evenly and dissipates heat quickly; Simple and compact structure, small size high strength, not easy to break, acid and alkali corrosion resistance, durable

PRODUCT FEATURES

  • Superior chemical and mechanical stability
  • High hardness, high wear resistance
  • High thermal conductivity, high electrical insulation
  • Effective anti-interference (EMI), anti-static
Solar Silicone Manufcaturer in Ahmedabad

APPLICATION

  • IC / MOS / triode
  • Surface heat source for diode and IGBT
  • High density switching power supply

  • High frequency communication equipment
  • High frequency welding machine and other equipment
Test items Unit AM240 Test Method
Colour - white -
Specific Gravity g/cm³ 3.70 GB/T 2413
Thermal Conductivity (25℃) W/m·K 24 ISO 22007-2
Dielectric Constant 1 MHz 9-10 GB/T 5594.4
Breakdown Voltage KV/mm ≥17 GB/T 5593
Flexural strength MPa ≥400 GB/T 5593
Warpage ‰ ≤2 -
Surface Roughness μm 0.2-0.75 GB/T 6062
Water Absorption % 0 GB/T 3299
Volume Resistivity (20℃) Ω·cm ≥1014 GB/T 5594.5
Thermal Expansivity 10-6 ℃-1 (20-300℃)
10-6 ℃-1 (300-800℃) 		6.5-7.5
6.5-8.0 		GB/T 5594.3
